6",8" CCT & Lumen Selectable | TS21 Series
INTEL A LIGHT 8"
CCT Color & Power Selectable Intelligent Commercial Downlight
(No housing required)
Field select CCT
Color Temperature from 30K, 35K, 40K, 50K
Field select Power
Choose from 3 different lumen outputs.
Universal Voltage
120V/277V.
CRI
92+ CRI The highest in the industry for better color vibrancy full Spectrum Illumination.
Dimmable
0-10V dimmable to 5%.
Series: TS21 Series
Indoor | Recessed Lighting
Indoor | Recessed Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Efficiency | Lumens | CRI | Voltage | Download |
|---|---|---|---|---|---|---|---|---|---|
| LU10144-Z | TS21-18W-6NV-ZZK-D | 6'' | 7W/10W/18W | 3000K-3500K-4000K | 100 LPW | 700lm/1000lm/1800lm | >92 | 120-277 V | Spec Sheet |
| LU10145-Z | TS21-22W-8NV-ZZK-D | 8'' | 10W/15W/22W | 3000K-3500K-4000K | 100 LPW | 1000lm/1500lm/2200lm | >92 | 120-277 V | Spec Sheet |
| LU10146-Z | TS21-32W-9.5NV-ZZK-D | 9.5'' | 20W/25W/32W | 3000K-3500K-4000K | 100 LPW | 2000lm/2500lm/3000lm | >92 | 120-277 V | Spec Sheet |

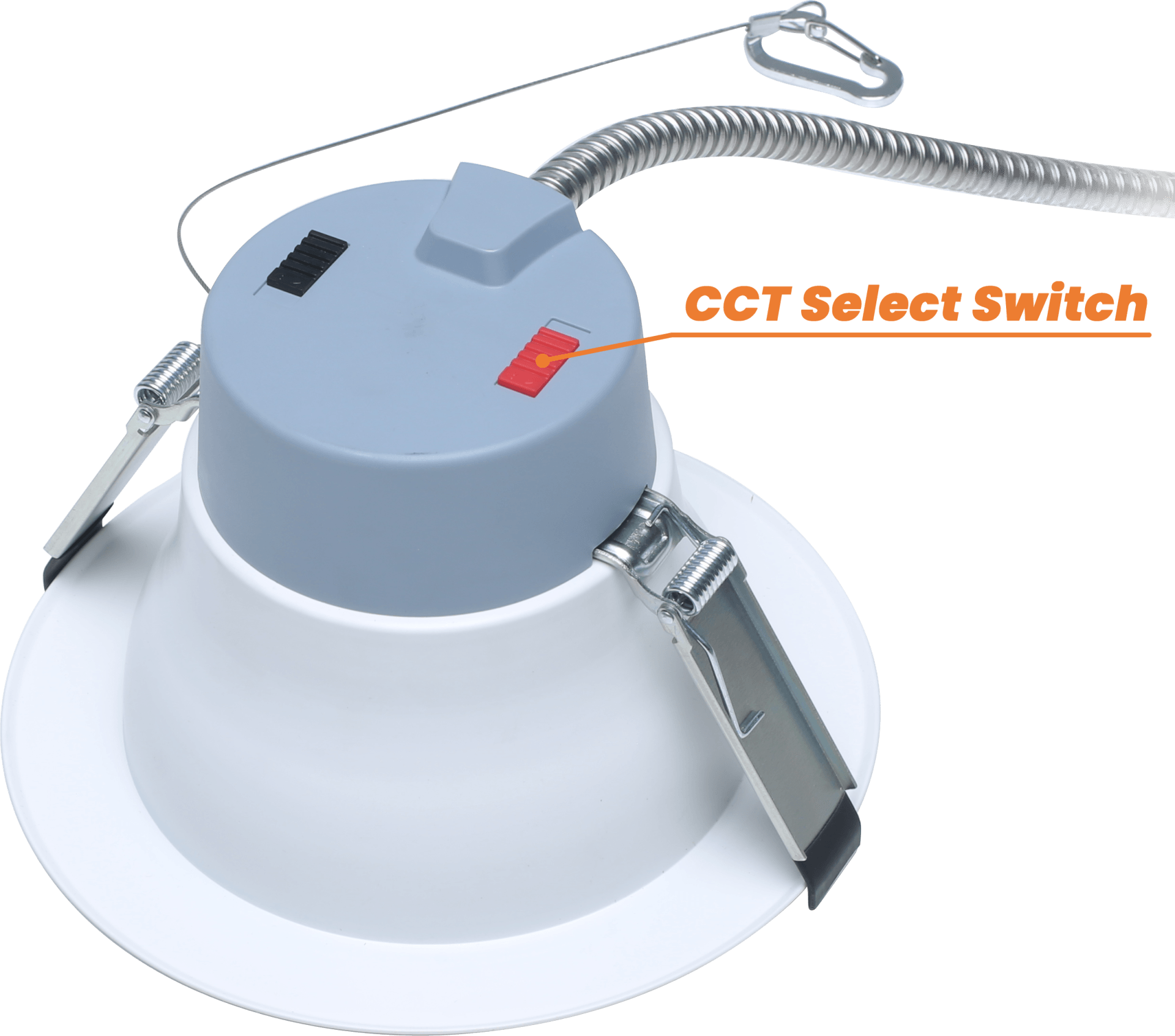

Field Select Color Temperature
Color Selectable Switch
4 color option choose between either 30k, 35k, 40k model or 30k, 40k, 50k model Select from the warmest of whites to the coolest of whites. never worry about having the correct color temperature for a customer or project again.
92+ CRI
The highest in the industry! for better color vibrancy full Spectrum Illumination.
Certifications
ENERGY STAR® certified fixture.
ETL, UL certified. T24
92+ CRI
The highest in the industry! for better color vibrancy full Spectrum Illumination.
Non Flicker Technology
Medically recommended non flicker eliminates eye strain. You can take videos and pictures without those annoying lines on the screen caused by flicker.
Medically recommended non flicker eliminates eye strain. You can take videos and pictures without those annoying lines on the screen caused by flicker.
ENERGY STAR® certified fixture.
ETL, UL certified. T24

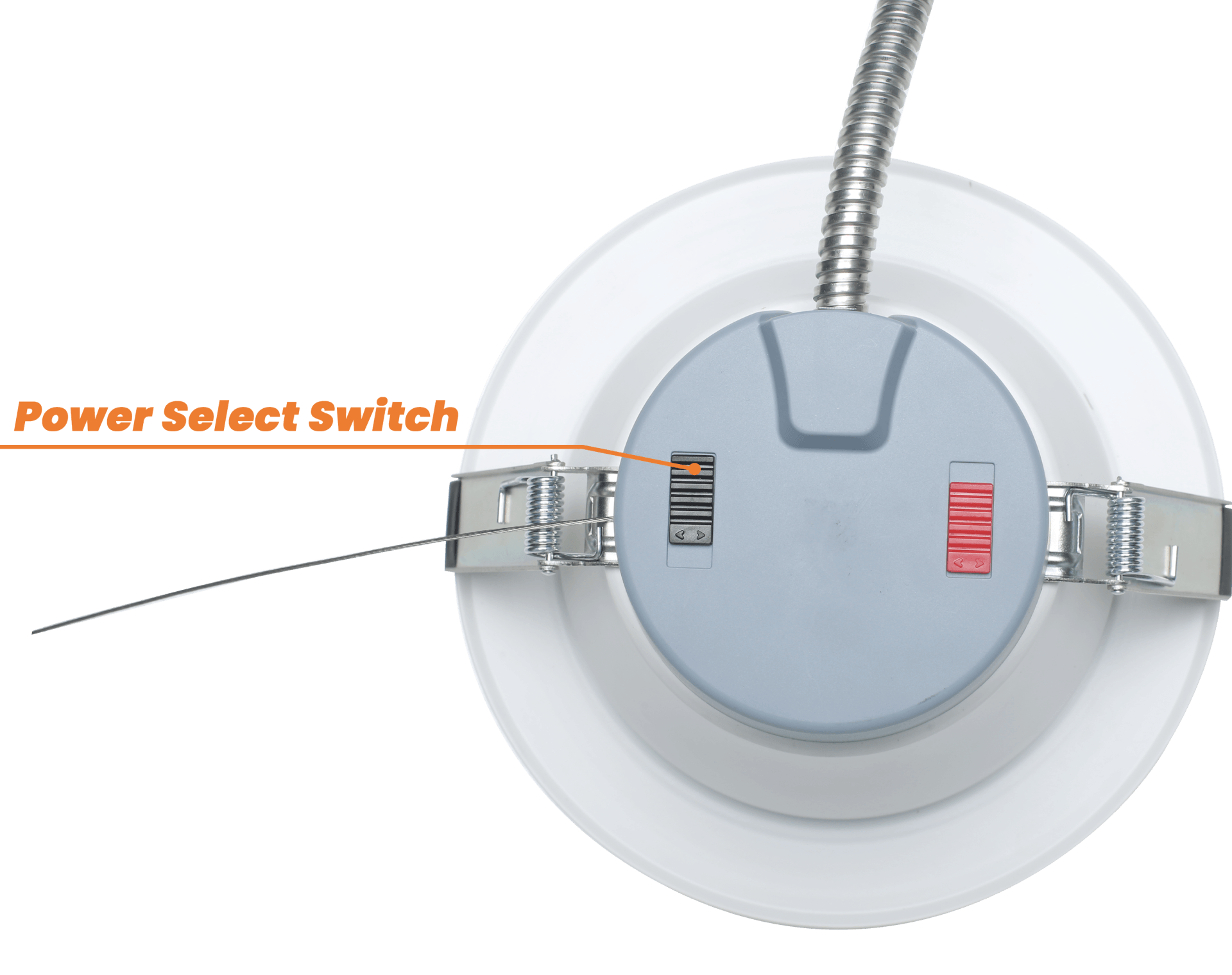

Field Select Lumen Adjustable
Intelligent light source
Choose your light level.
State of the art luminaire
3 defined light levels choose between either 10 Watts
@ 1000 Lumens , 15 Watts, @ 1500 Lumens, 22 Watts @ 2200 Lumens models.
Select the power and brightness with a touch of a switch. luminous efficiency: 95/100lm + a Watt.
Never worry about having enough light for a customer or project again.
Direct Replacements
LED offers higher efficiency and increased life specially when replacing compact fluorescent, metal halide and incandescent and halogen downlights.
Construction

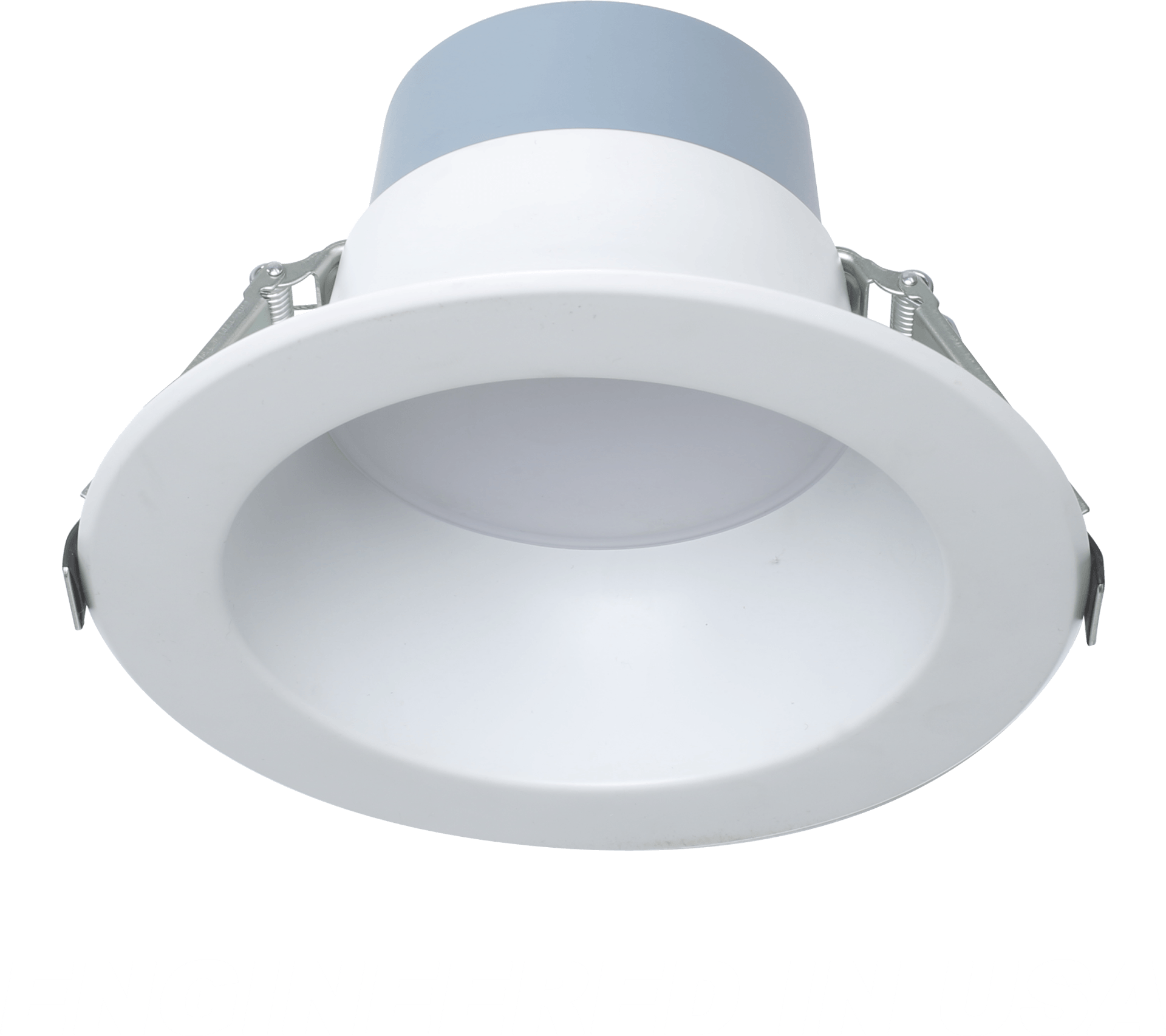

Engineered in USA
IC rated
For direct contact with ceiling insulation.
Solid Aluminum
Spun aluminum White reflector
for a smooth even spread of light.
BX cable
39" BX Cable for easy 6 foot spacing.
Non Flicker Driver
Medically proven to eliminate eye strain and headaches. Our non flicker technology is medically proven to also reduce epileptic seizures.

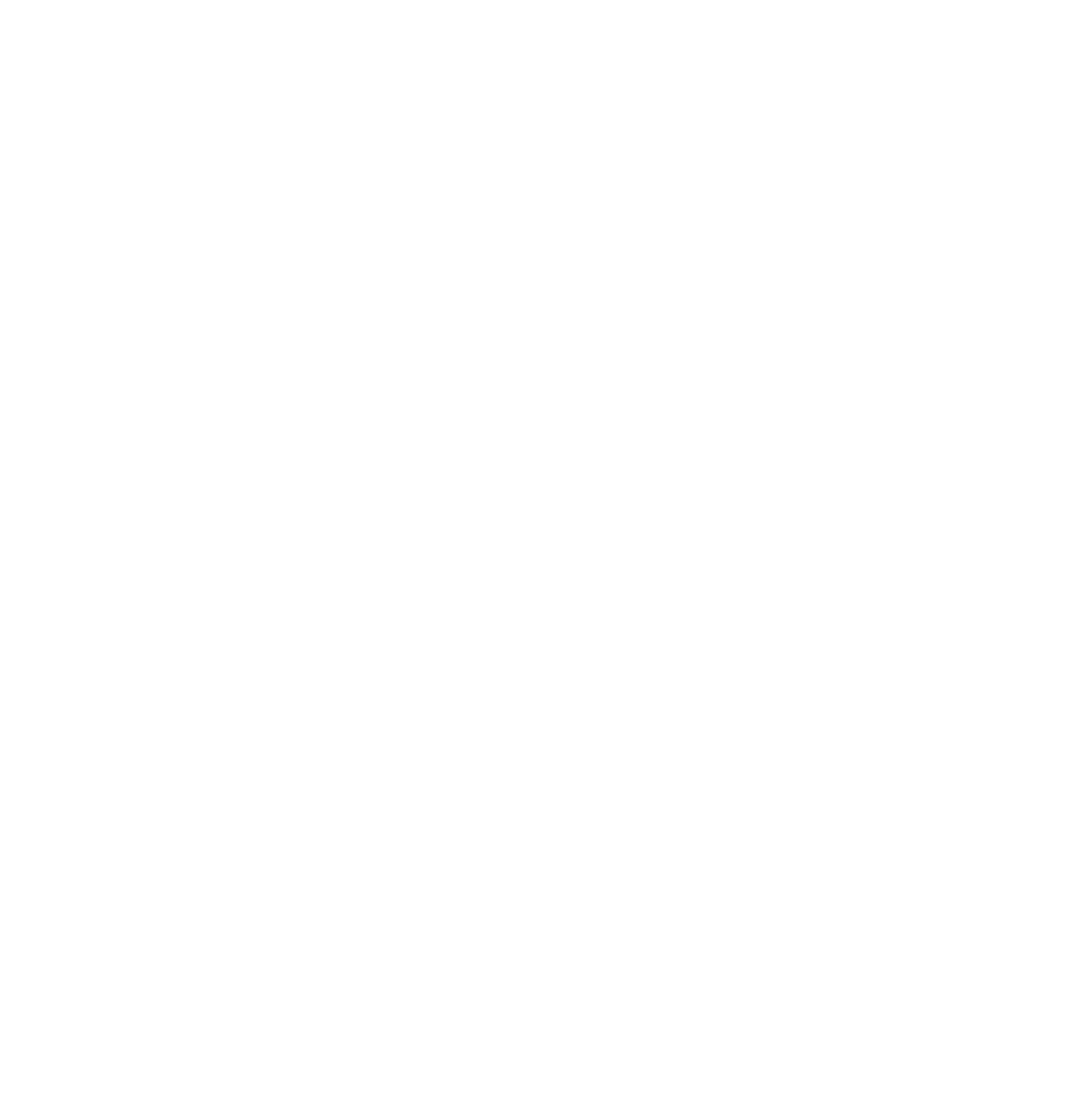

Flexible Installation
Rated for IC (Insulation Contact) air tight and damp or wet locations, This easy-to-install fixture does not require a separate housing as it can be mounted directly into the ceiling.
Spring action clips to accommodate ½” to 2” ceiling thicknesses.
This light is accessible from below the ceiling.
Universal Mounting Plate (Optional)
Universal Mounting Plate are a fast and convenient solution for installing recessed J-Box fixtures. This is the Industry's First one size fits all plate, allowing for a wide range of different sized recessed fixtures.
Installs onto STUD and JOISTS.
