Linear High Bay | Single Lens | TR08 Series
LED LINEAR HIGH BAY
Properly lit warehouses and factories increase productivity, employee satisfaction and staff safety. This new 7th generation linear high bay delivers the perfect results time and time again.
Series:
TR08 Series
Indoor Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | Sensor | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 57-31100-XX | TR08-80W-2FT-ZZK-PDN | 2FT | 80W | 40K,50K | 133.27 lm/W | 10258 lm | >80 | 120-277V | Optional | .ies | LM79 |
| 57-31101-XX | TR08-110W-2FT-ZZK-PDN | 2FT | 110W | 40K,50K | 131.96 lm/W | 13525 lm | >80 | 120-277V | Optional | .ies | LM79 |
| 57-31102-XX | TR08-165W-2FT-ZZK-PDN | 2FT | 165W | 40K,50K | 136.05 lm/W | 21061 lm | >80 | 120-277V | Optional | .ies | LM79 |
| 57-31104-XX | TR08-220W-2FT-ZZK-PDN | 2FT | 220W | 40K,50K | 140.92 lm/W | 29115 lm | >80 | 120-277V | Optional | .ies | LM79 |
| 57-31105-XX | TR08-225W-4FT-ZZK-PDN | 4FT | 225W | 40K,50K | 138.43 lm/W | 28032 lm | >80 | 120-277V | Optional | .ies | LM79 |
| 57-31106-XX | TR08-300W-4FT-ZZK-PDN | 4FT | 300W | 40K,50K | 132.20 lm/W | 40796 lm | >80 | 120-277V | Optional | .ies | LM79 |
SPECIFICATIONS

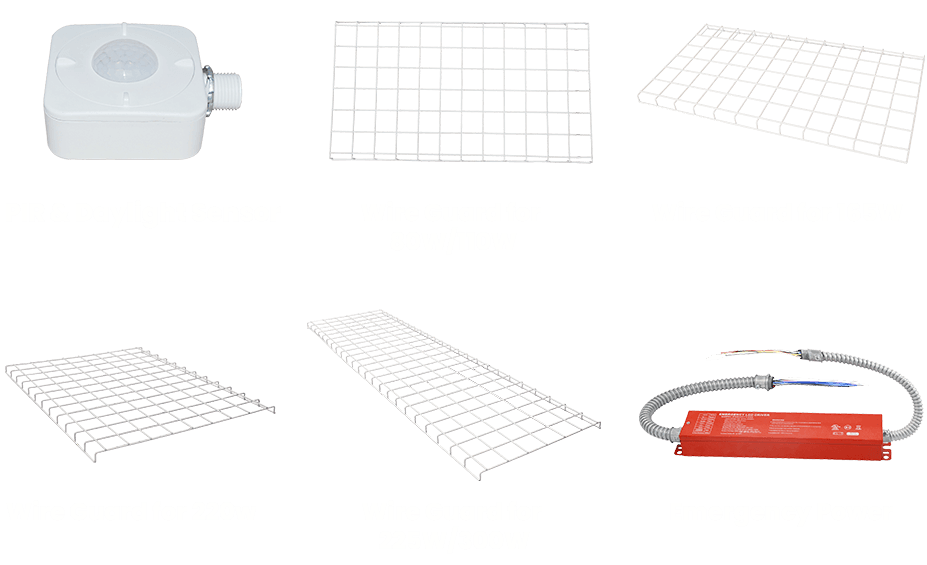

ACCESSORIES
