Round/UFO High Bay | Gen I | TR21 Series

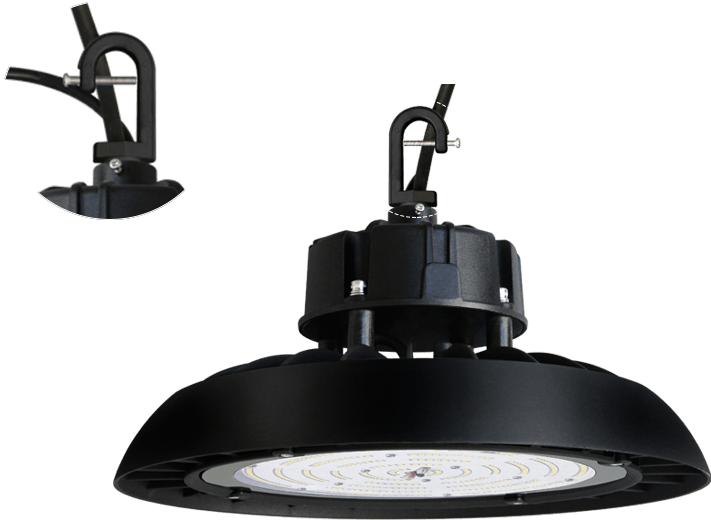

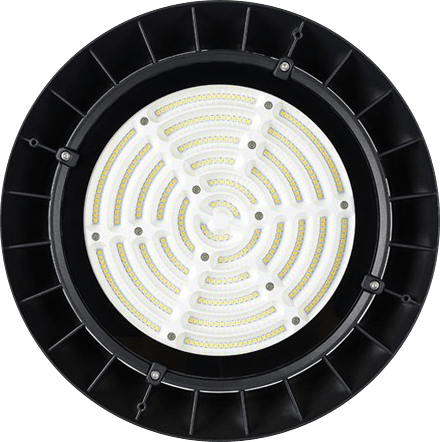

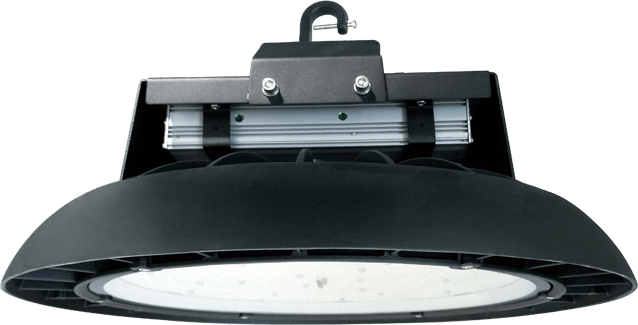

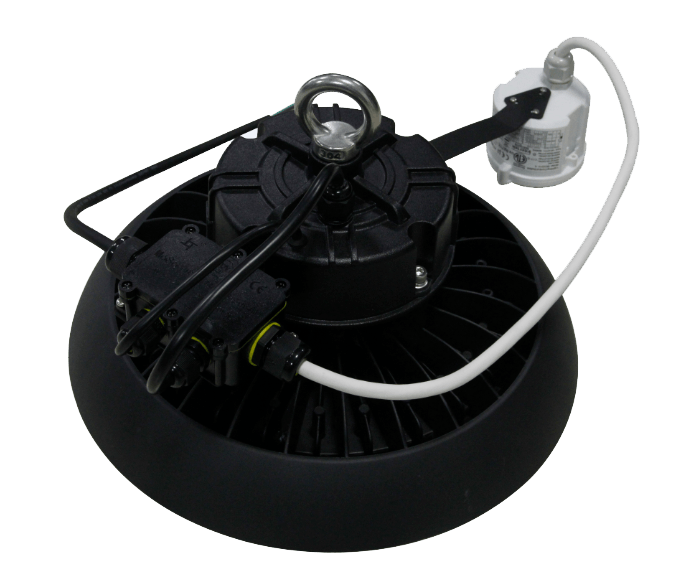

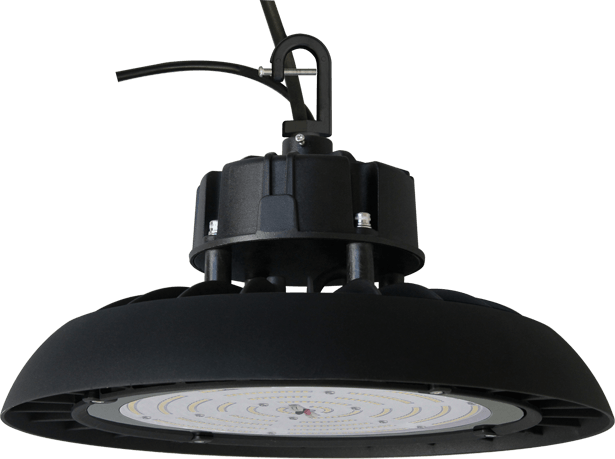

LED UFO HIGH BAY
This is an extremely versatile fixture for retrofitting existing offices, warehouses and manufacturing locations or for new construction. Sturdy, rugged and quality build.
Series:
TR21 Series
Indoor Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | Sensor | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 57-64001-XX | TR21-100W-XXK-A110-H | Φ10.71" | 100W | 40K,50K | 157.87 lm/W | 14843 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-64002-XX | TR21-150W-XXK-A110-H | Φ13.00" | 150W | 40K,50K | 150.54 lm/W | 21858 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-64003-XX | TR21-200W-XXK-A110-H | Φ14.93" | 200W | 40K,50K | 151.26 lm/W | 29465 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-64004-XX | TR21-240W-XXK-A110-H | Φ14.93" | 240W | 40K,50K | 151.14 lm/W | 36488 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-64005-XX | TR21-300W-XXK-A110-H | Φ17.20" | 300W | 40K,50K | 157.24 lm/W | 46190 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
SPECIFICATIONS

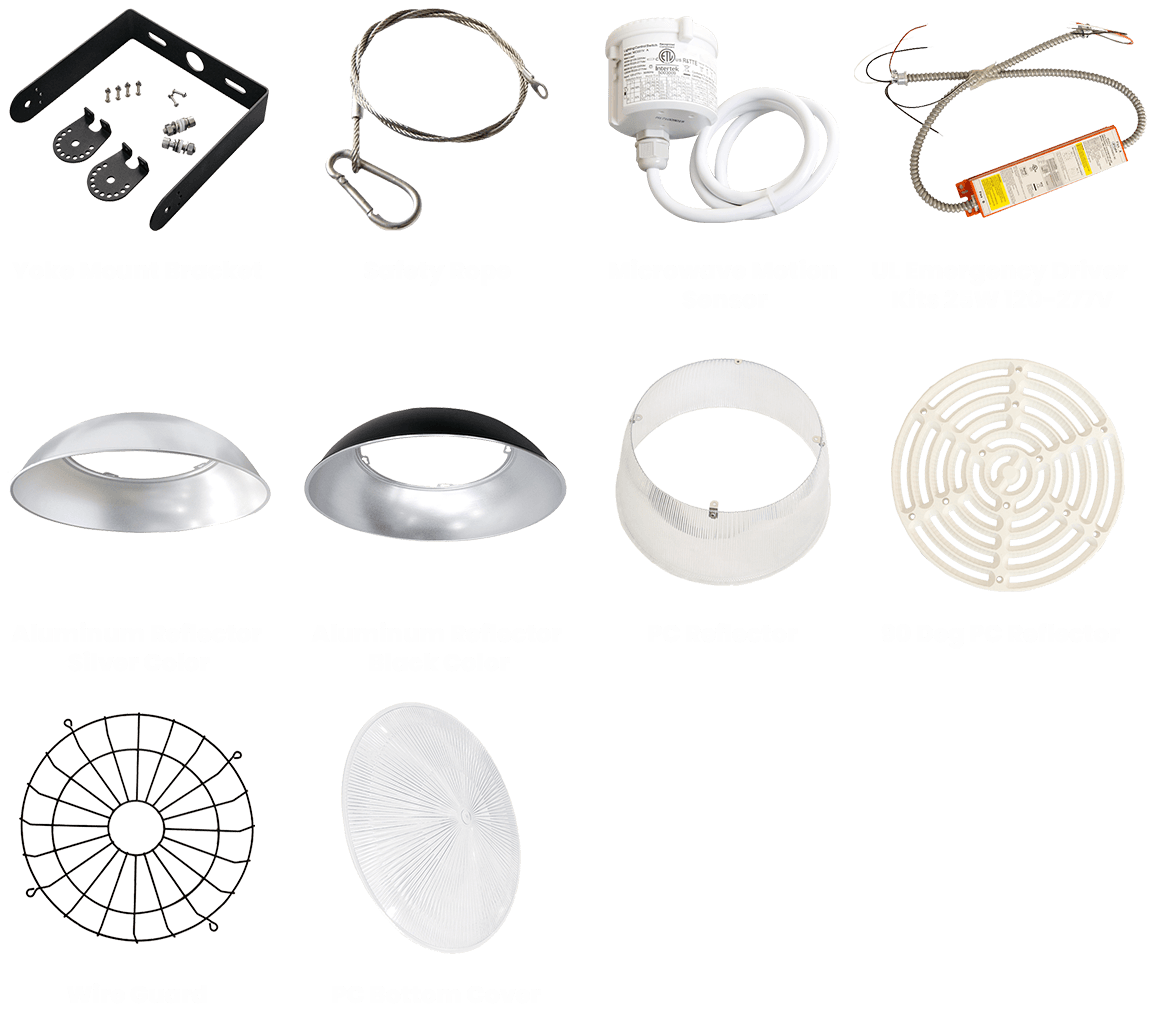

ACCESSORIES
