WallPack | Gen I Small Footprint | TR61 Series

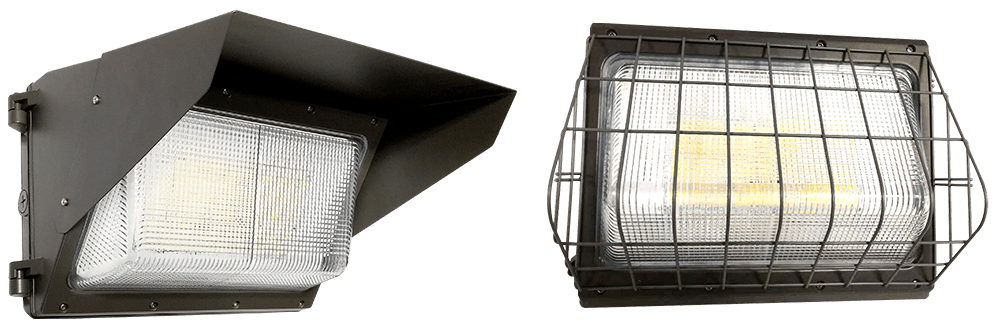

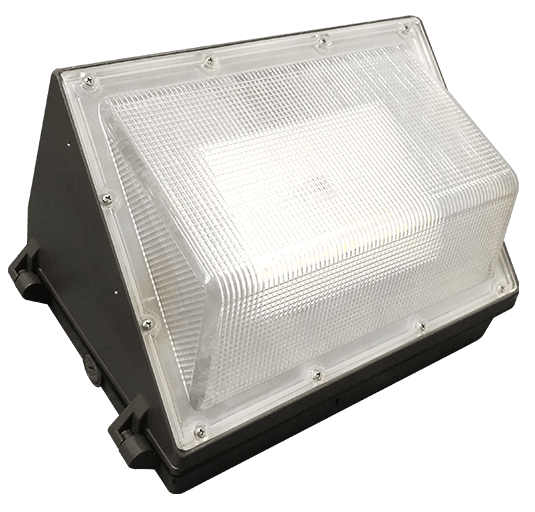

LED WALL PACK
Utilizing the latest generation of LED chips, this uniquely designed wall pack delivers the highest lumens in its class. Housing is made of die cast aluminum with durable powder coating specifically for a harsh outdoor environment dry or wet environment.
Series:
TR61 Series
Outdoor Lighting
| SKU | Lamp Code | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | Sensor | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|
| 57-63002-XX | TR61-40W-XXK-NV-P-H | 40W | 40K, 50K | 143.69 lm/W | 5686 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-63003-XX | TR61-60W-XXK-NV-P-H | 60W | 40K, 50K | 141.97 lm/W | 8931 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-63004-XX | TR61-80W-XXK-NV-P-H | 80W | 40K, 50K | 143.43 lm/W | 11410 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-63005-XX | TR61-100W-XXK-NV-P-H | 100W | 40K, 50K | 147.45 lm/W | 15099 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
| 57-63006-XX | TR61-120W-XXK-NV-P-H | 120W | 40K, 50K | 146.16 lm/W | 17671 lm | >80 | 120-277V | No Sensor | .ies | LM79 |
Options

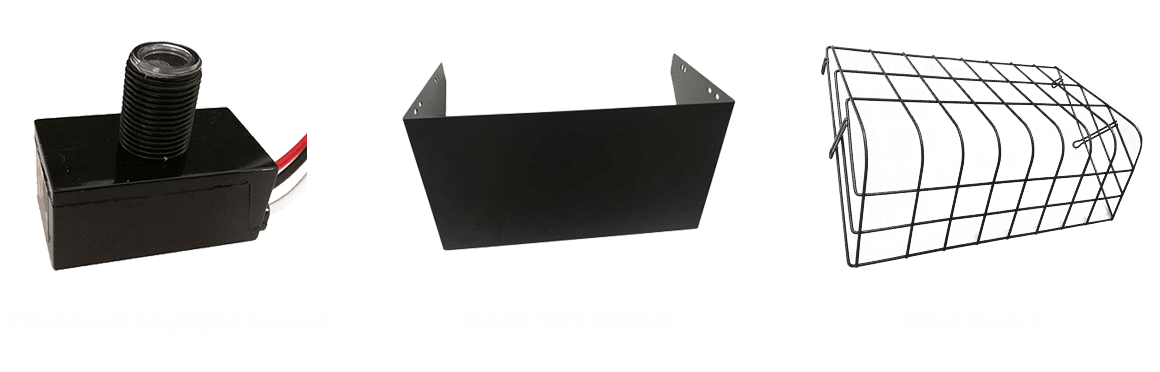

ACCESSORIES:
