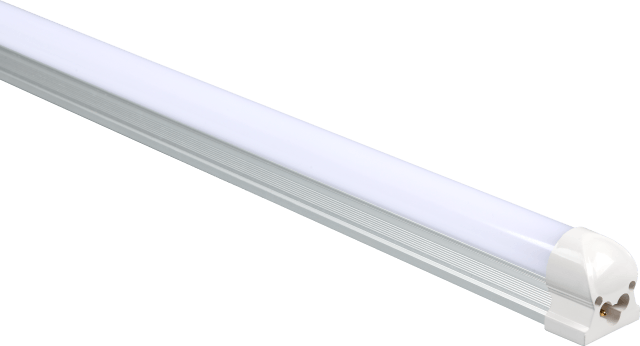

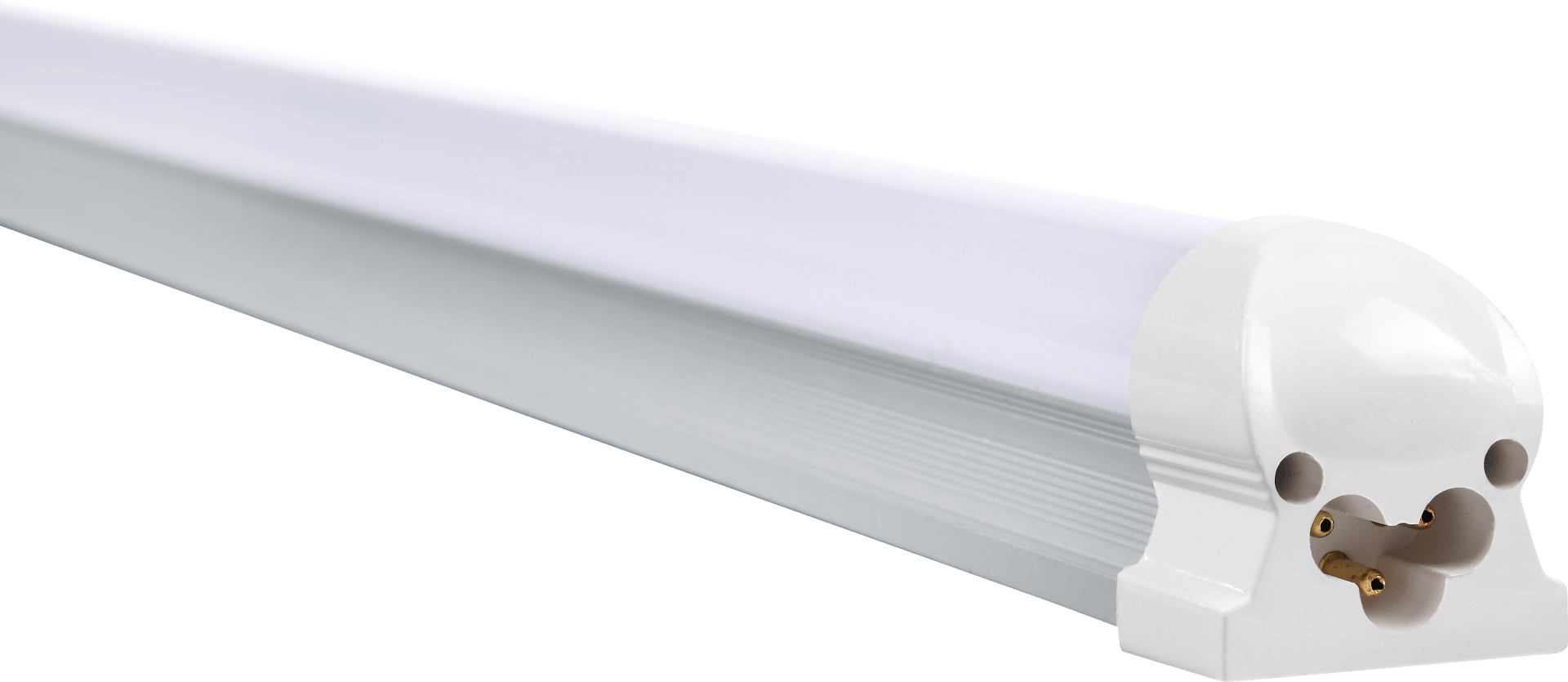

LED Integrated Strip Light | HS08 Series
Integrated Led Linear Light

 Use as a strip fixture or for low bay lighting.
 90 CRI for better color vibrancy.
 Low profile slim design.
 Priced to fit any budget.
Series: HS08 Series
Indoor Lighting
SKU Lamp Code Size Wattage CCT Lm/W Lumens CRI Voltage Download
30-26010-XX HS08-10W-60-XXK-PNN-F 2' 10W 30K,35K,40K, 50K 130 lm/W 1300lm 85 100-277V Spec Sheet
30-26011-XX HS08-18W-120-XXK-PNN-F 4' 18W 30K,35K,40K, 50K 130 lm/W 2340lm 85 100-277V Spec Sheet
30-26012-XX HS08-22W-120-XXK-PNN-2F 4' 22W 30K,35K,40K, 50K 130 lm/W 2860lm 85 100-277V Spec Sheet
30-26018-XX HS08-30W-120-XXK-PNN-2F 4' 30W 30K,35K,40K, 50K 130 lm/W 3900lm 85 100-277V Spec Sheet
30-26016-XX HS08-45W-240-XXK-PNN-F 8' 45W 30K,35K,40K, 50K 130 lm/W 5850lm 85 100-277V Spec Sheet
30-26017-XX HS08-60W-240-XXK-PNN-2F 8' 60W 30K,35K,40K, 50K 130 lm/W 7800lm 85 100-277V Spec Sheet
LU08003-X HS08-22W-120-XXK-PNN-2F 4' 22W 30K,35K,40K, 50K 130 lm/W 2860lm 85 100-277V Spec Sheet
LU08004-X HS08-30W-120-XXK-PNN-2F 4' 30W 30K,35K,40K, 50K 130 lm/W 3900lm 85 100-277V Spec Sheet
LU08007-X HS08-45W-240-XXK-PNN-F 8' 45W 30K,35K,40K, 50K 130 lm/W 5850lm 85 100-277V Spec Sheet
LU08008-X HS08-60W-240-XXK-PNN-2F 8' 60W 30K,35K,40K, 50K 130 lm/W 7800lm 85 100-277V Spec Sheet
Integrated LED Linear Light

Applications
Unlimited solutions such as high bay, strip lighting and retrofitting  fluorescent lights.

Certification
DLC and ETL Certified.

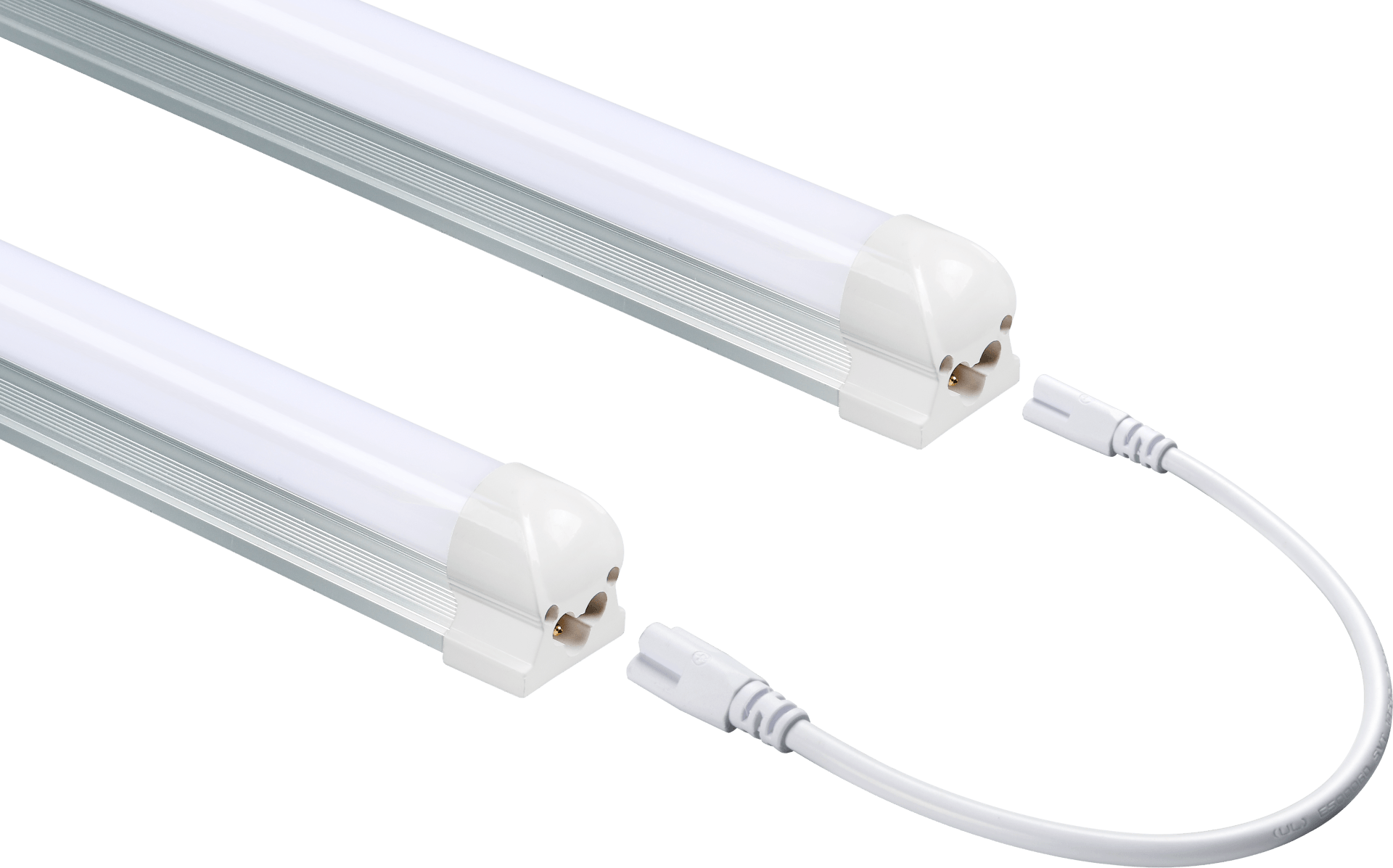

Linkable

Can be linked together by cord or directly into each other. can be linked up to 300 Watts.

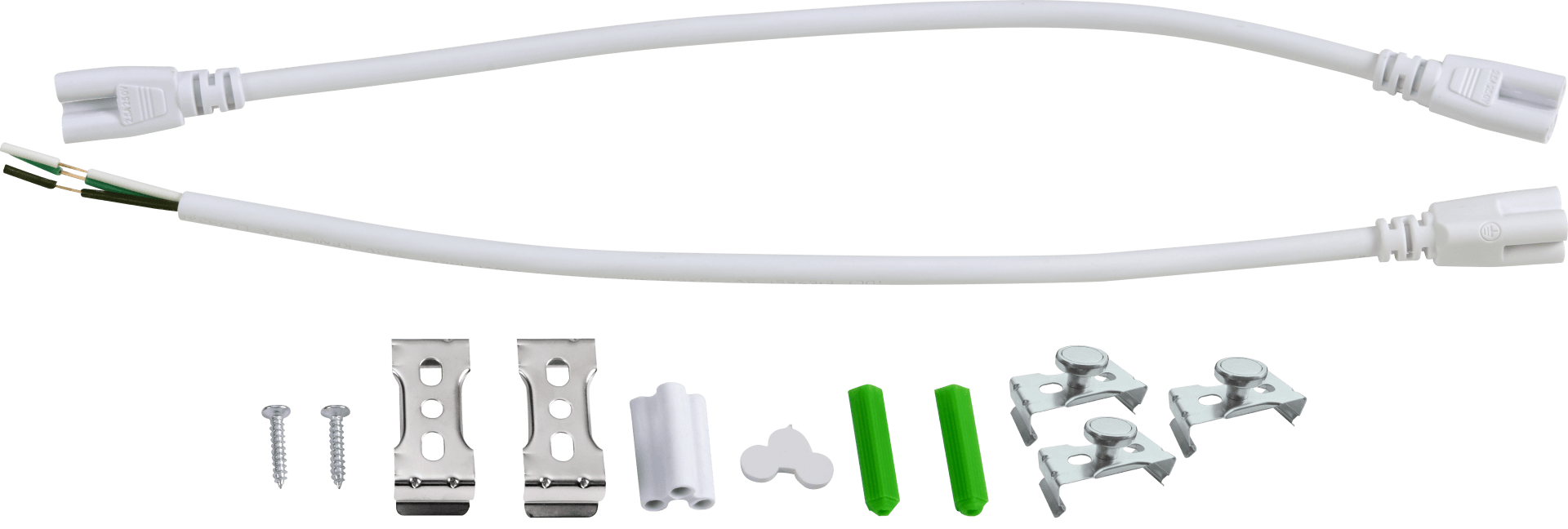

Hardware and Parts


Includes all necessary hardware, power cord joiners and mounting hardware.

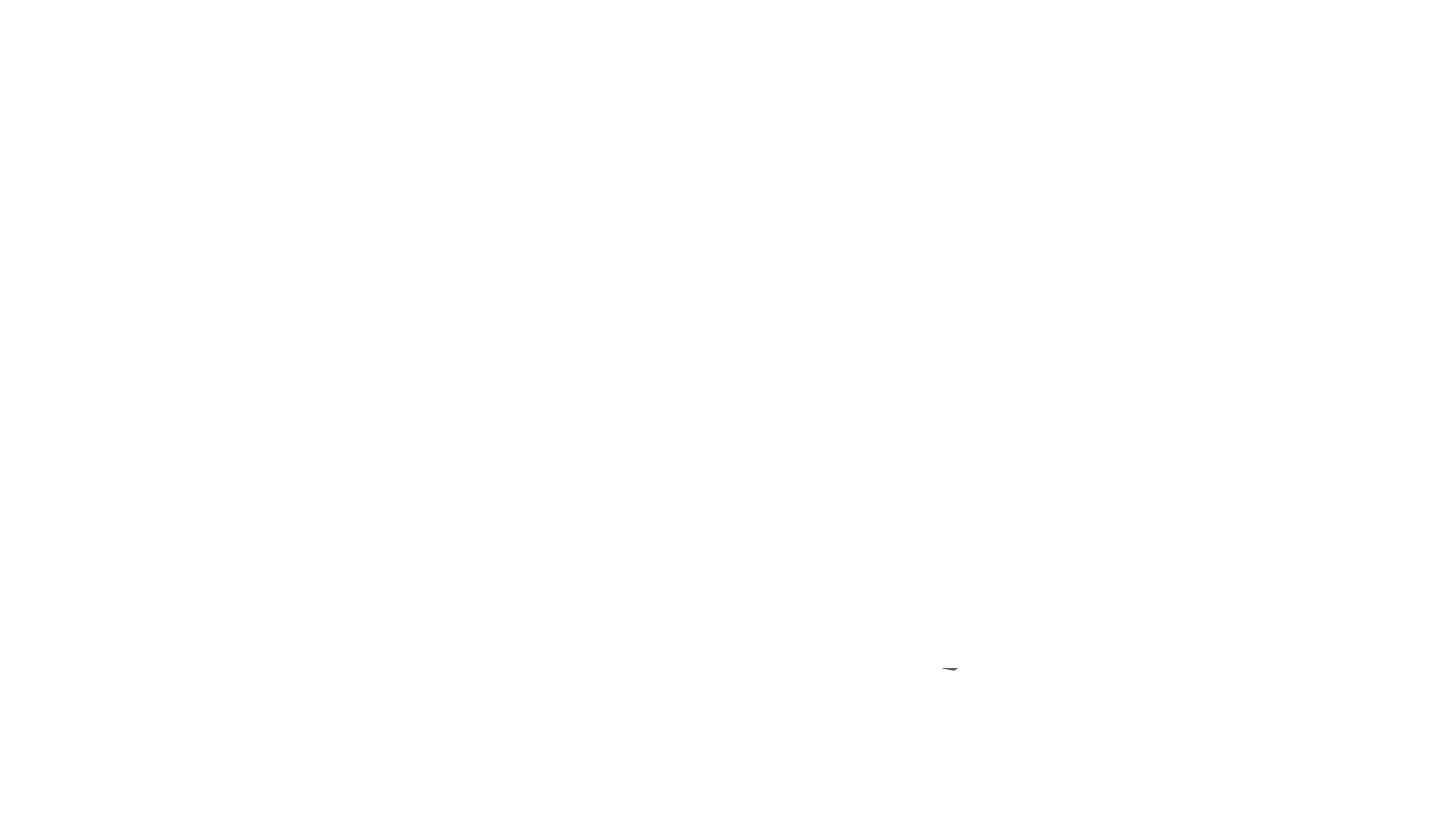

Installation Instructions
Connection Installation

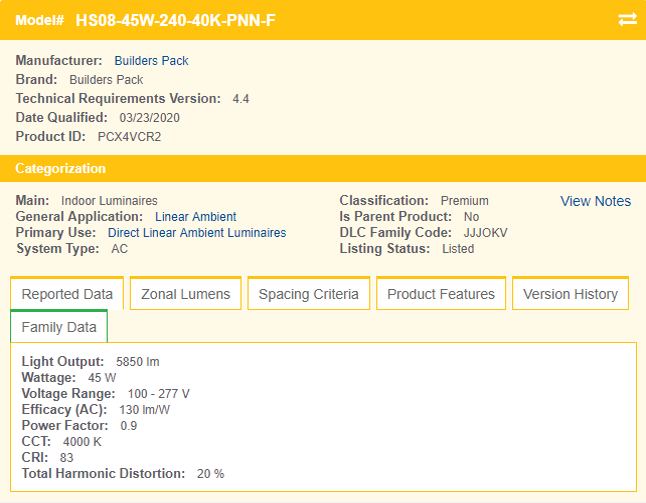

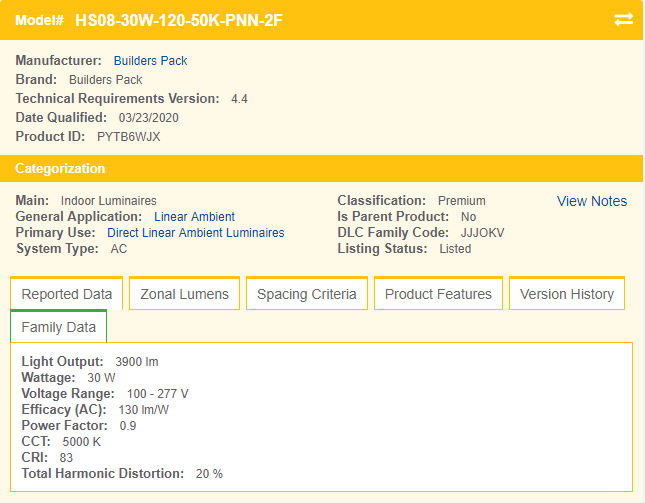

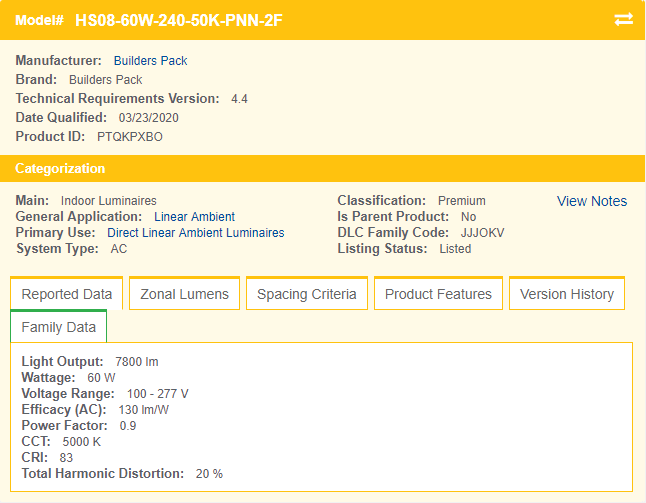

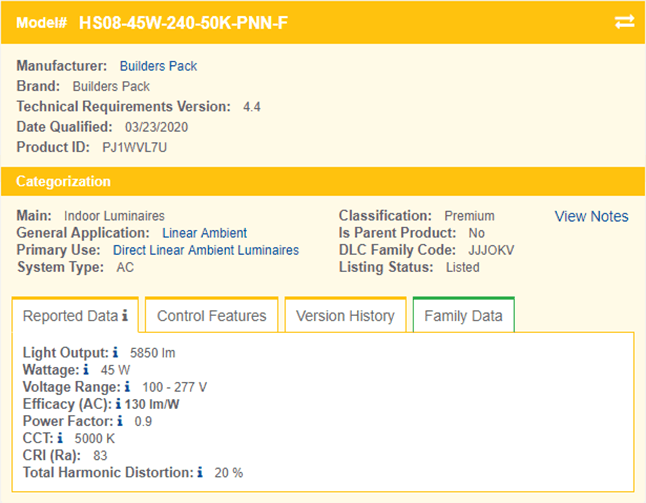

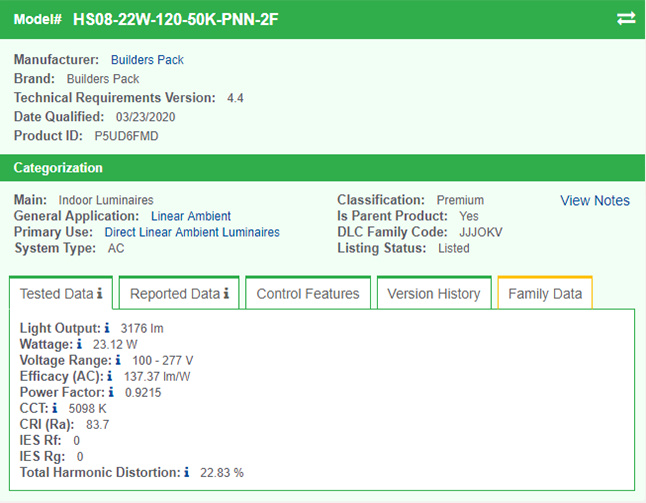

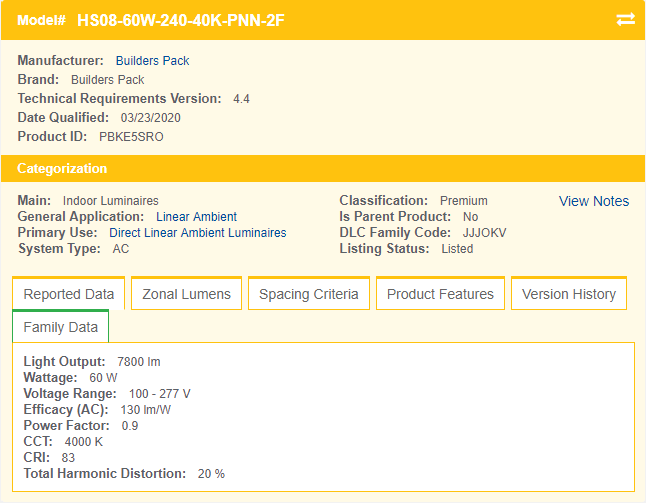

DLC SCREENSHOTS
