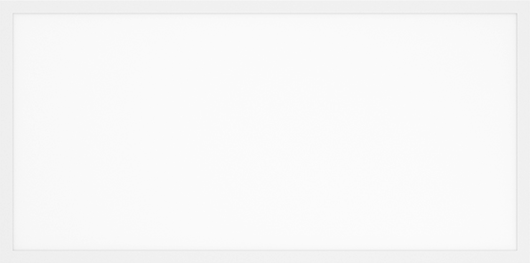

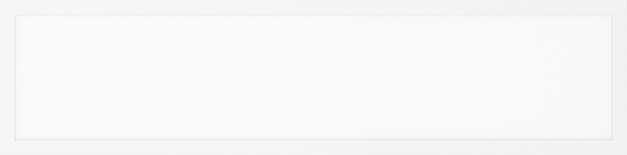

Back-Lit LED Panel / Troffer | LH02 Series
LED BACK LIT PANEL
Sturdy, rugged and quality built. Provides a smooth and uniform light edge to edge for a clean sharp look.
Series:
LH02 Series
Indoor Lighting
| SKU | Lamp Code | Size | Wattage | CCT | Lm/W | Lumens | CRI | Voltage | IES File | LM79 File |
|---|---|---|---|---|---|---|---|---|---|---|
| 78-20006-XX | LH02-20W-14-ZZK-PDN | 1x4' | 20W | 40K,50K | 128 lm/W | 2560 lm | >80 | 120-277V | .ies | LM79 |
| 78-20005-XX | LH02-20W-22-ZZK-PDN | 2×2' | 20W | 40K,50K | 128 lm/W | 2560 lm | >80 | 120-277V | .ies | LM79 |
| 78-20007-XX | LH02-25W-22-ZZK-PDN | 2×2' | 25W | 40K,50K | 128 lm/W | 3200 lm | >80 | 120-277V | .ies | LM79 |
| 78-20008-XX | LH02-30W-22-ZZK-PDN | 2×2' | 30W | 40K,50K | 128 lm/W | 3840 lm | >80 | 120-277V | .ies | LM79 |
| 78-20009-XX | LH02-40W-24-ZZK-PDN | 2×4' | 40W | 40K,50K | 128 lm/W | 5120 lm | >80 | 120-277V | .ies | LM79 |
| 78-20010-XX | LH02-50W-24-ZZK-PDN | 2×4' | 50W | 40K,50K | 128 lm/W | 6400 lm | >80 | 120-277V | .ies | LM79 |
SPECIFICATIONS
HQ driver for better dependability and performance.
For use in drop ceilings or drywall using the optional recessed mounting kit.

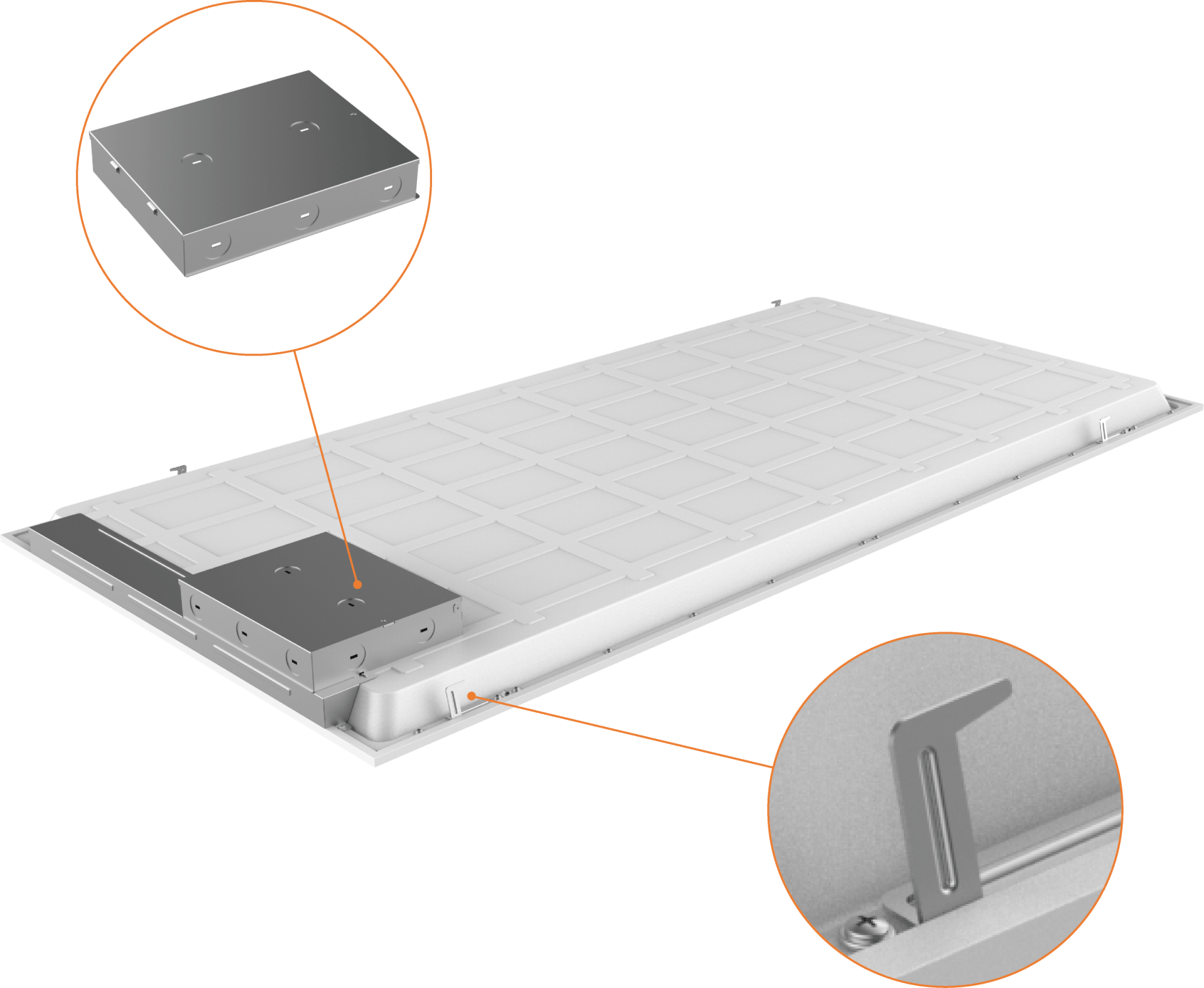

Comes with a modular splice box plus driver compartment, and integral T-bar clips for easy, secure installation.

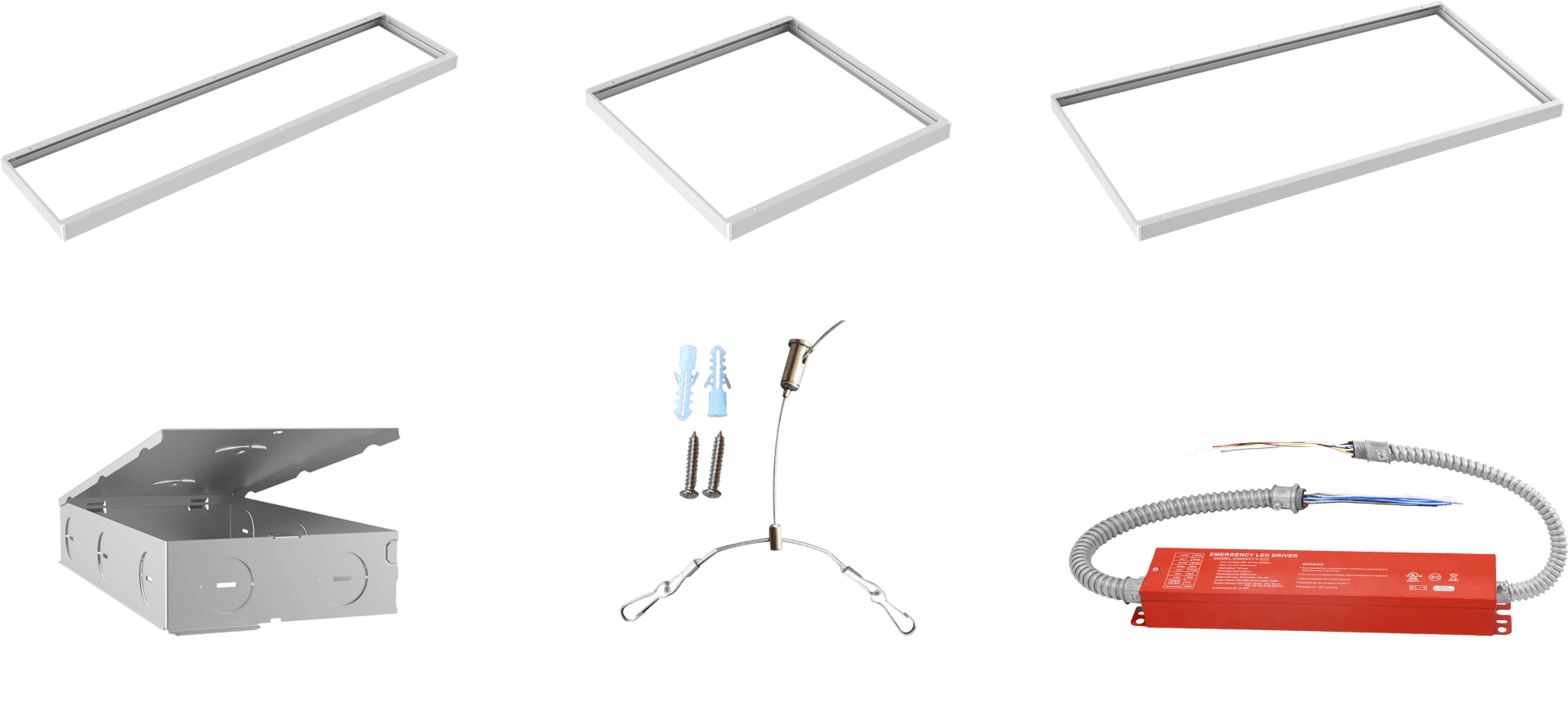

ACCESSORIES
