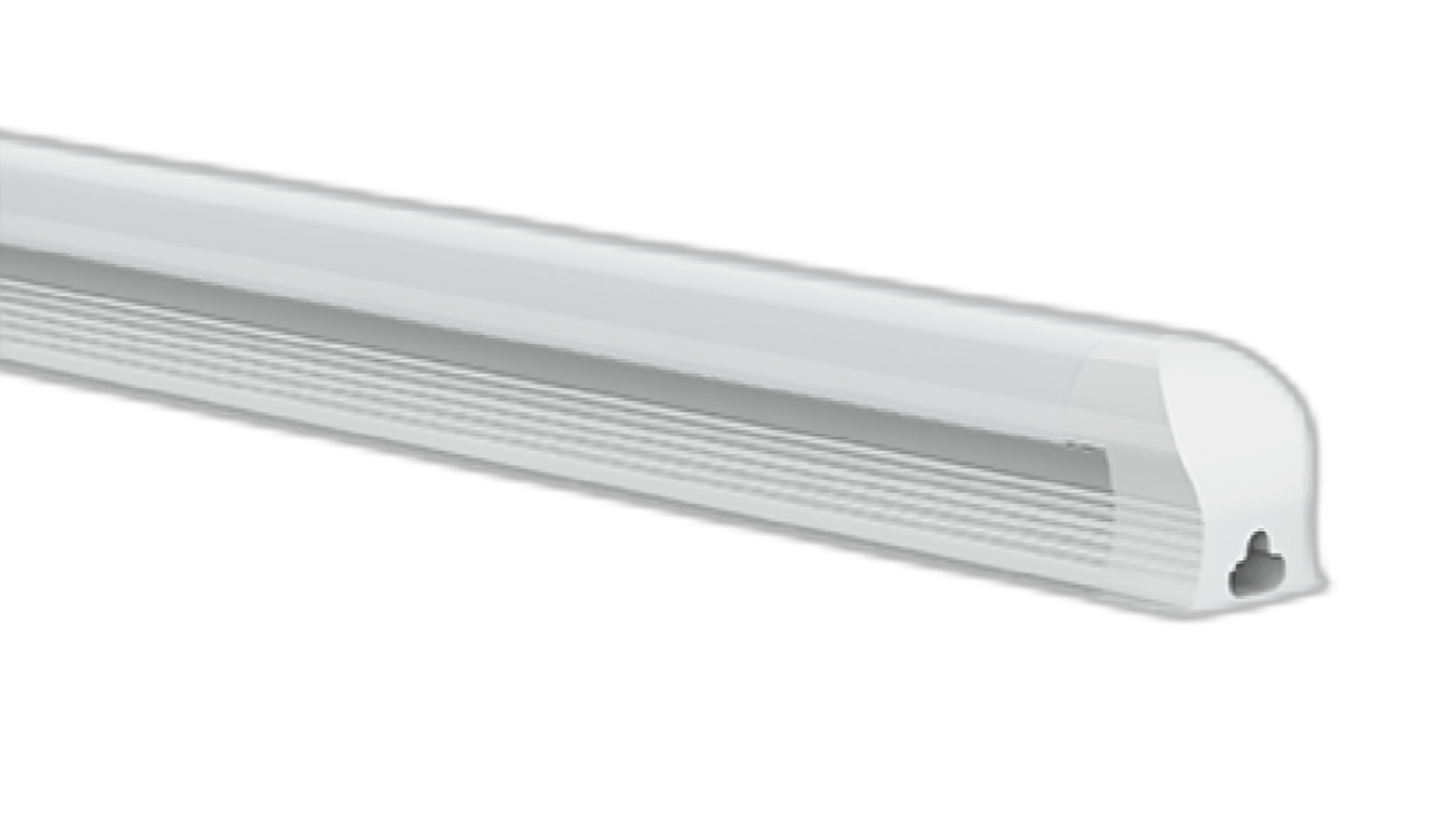

LED Integrated Strip Light | EPA36 Series
Integrated Low Bay Light

 Use as a strip fixture or for low bay lighting.
 90 CRI for better color vibrancy.
 Low profile slim design.
 Priced to fit any budget.
Series: EPA36 Series
Indoor Lighting
SKU Lamp Code Size Wattage CCT Lm/W Lumens CRI Voltage Download
77-26055-XX EPA36-T8AL-120-722-8XX-TR 4' 20.27W 40K, 50K 145.1 lm/w 2941.18lm 85 120-277V Spec Sheet
77-26056-XX EPA36-T8AL-120-730-8XX-TR 4' 34.21W 40K, 50K 155.6 lm/w 5324.49lm 85 120-277V Spec Sheet
77-26057-XX EPA36-T8AL-240-745-8XX-TR 8' 46.16W 40K, 50K 131.7 lm/w 6085.13lm 85 120-277V Spec Sheet
77-26058-XX EPA36-T8AL-240-760-8XX-TR 8' 64.1W 40K, 50K 132.4 lm/w 8487lm 85 120-277V Spec Sheet
Integrated LED Linear Light

Applications
Unlimited solutions such as high bay, strip lighting and retrofitting  fluorescent lights.

Certification
DLC and ETL Certified.
Linkable

Can be linked together by cord or directly into each other. can be linked up to 300 Watts.
Hardware and Parts


Includes all necessary hardware, power cord joiners and mounting hardware.
Installation Instructions
Connection Installation

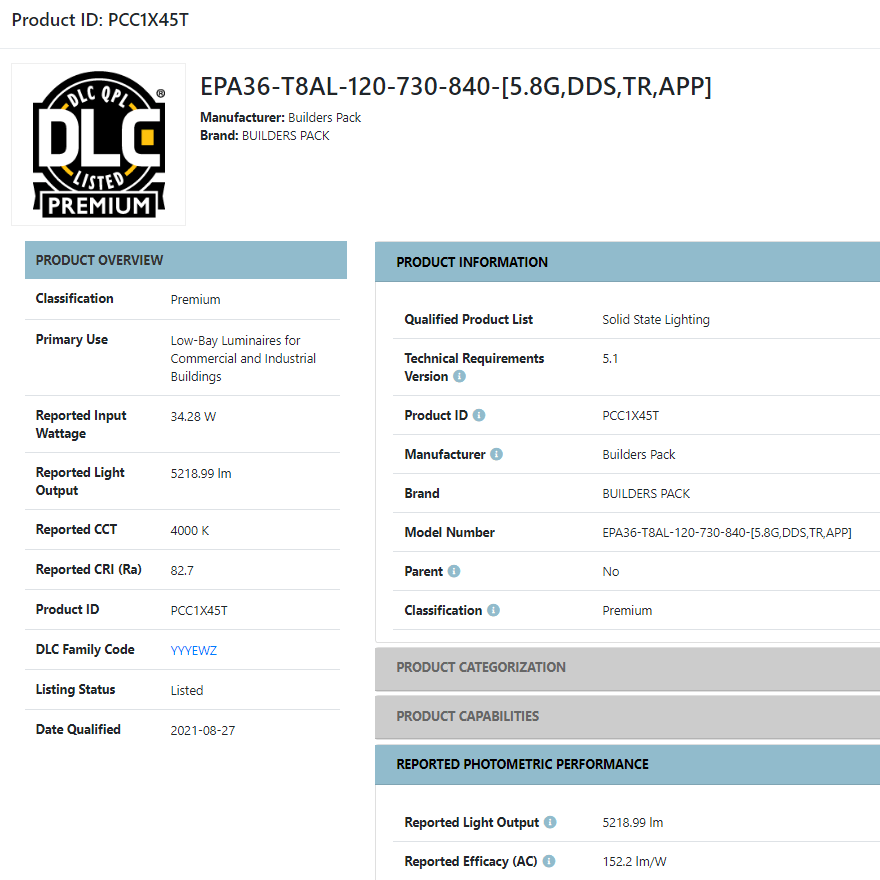

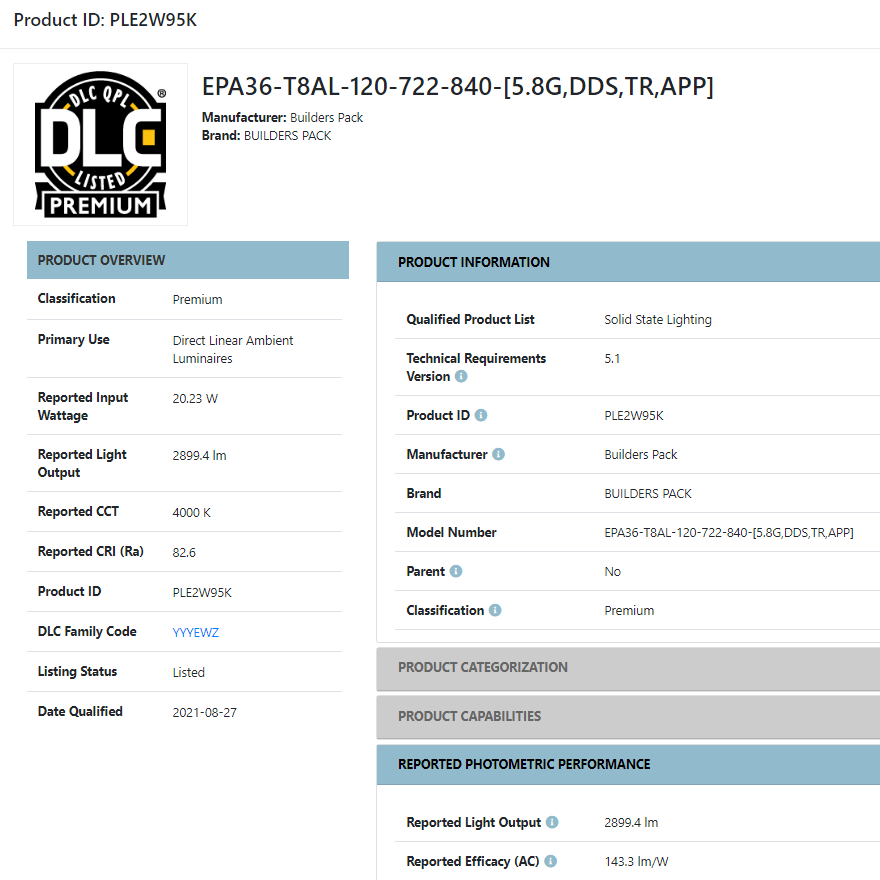

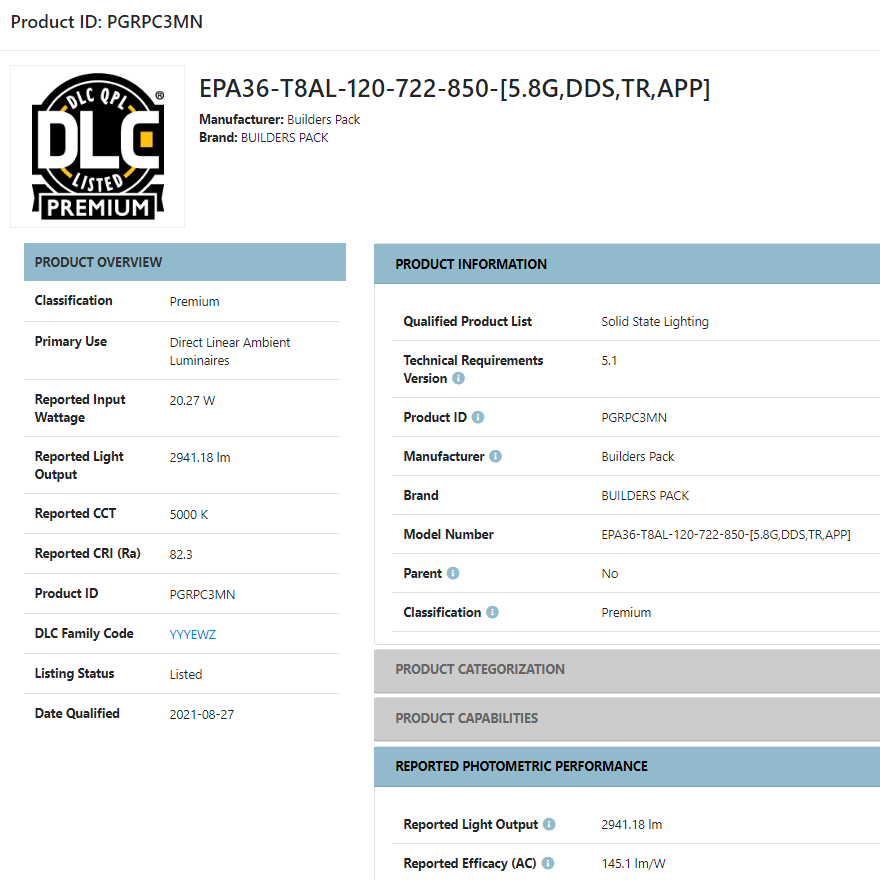

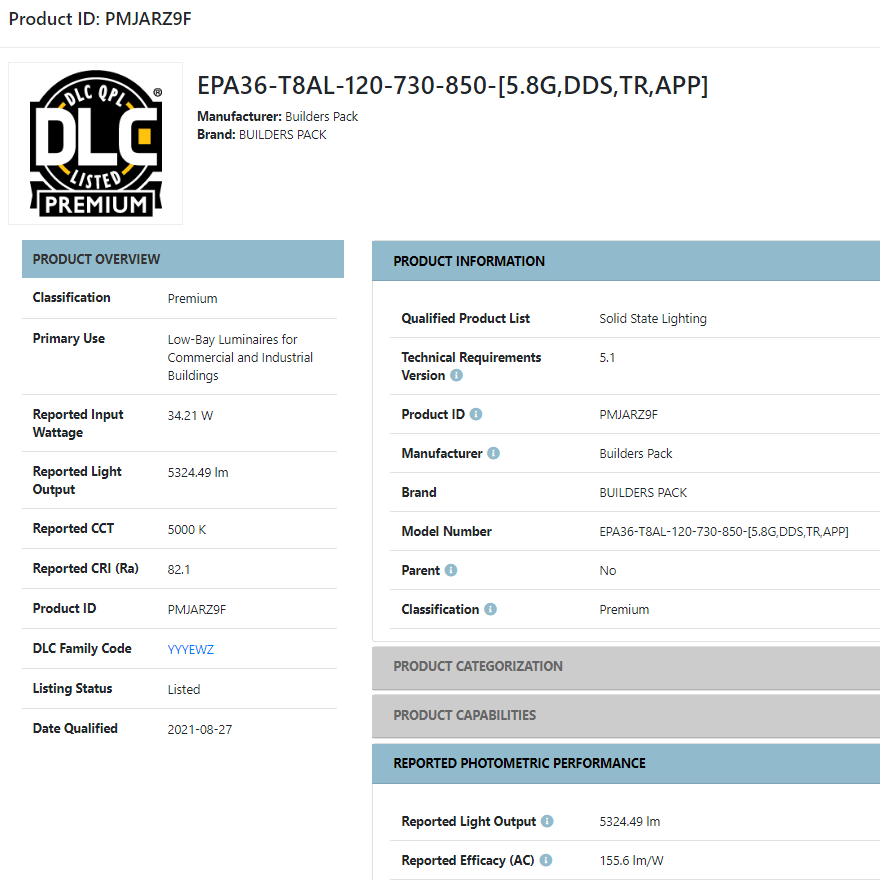

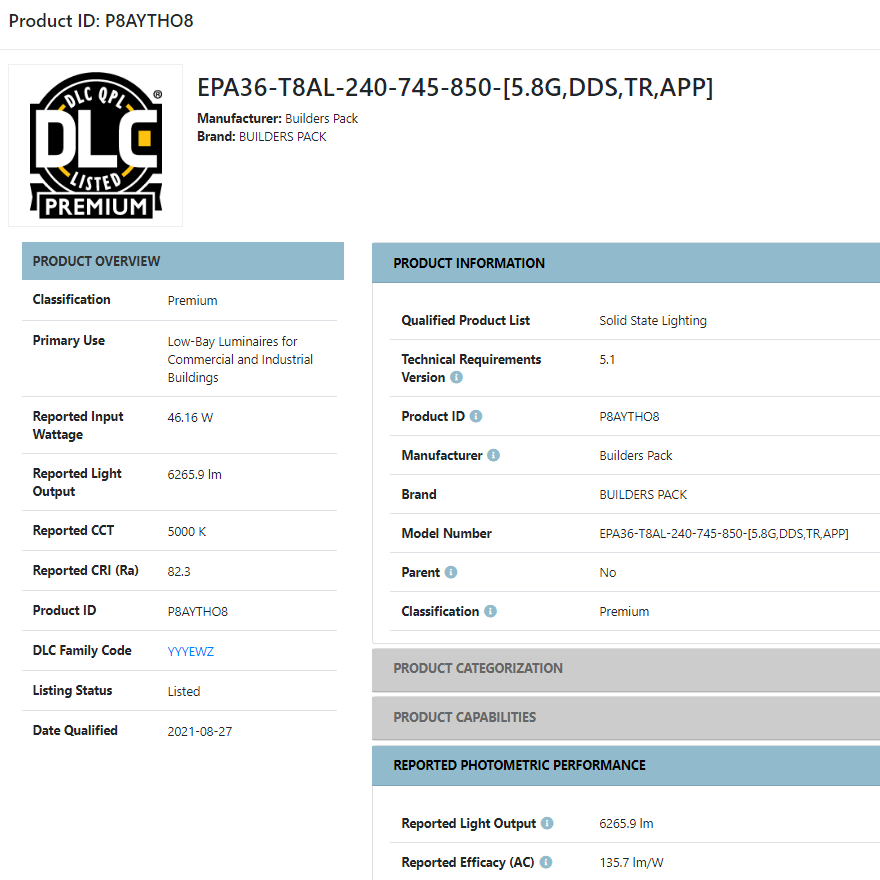

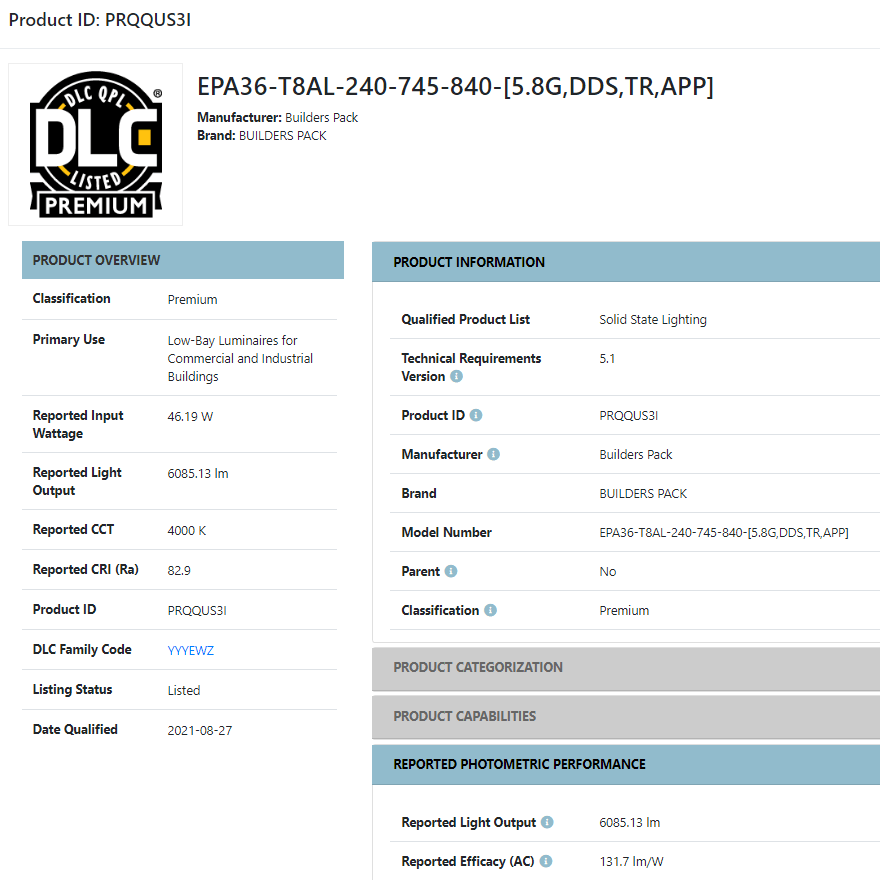

DLC SCREENSHOTS
